Relevant sections in spec:
Rule 11 in
seems verbose as3.2.5.14 General Assumptions
11. The Host must not send a second snoop request to an address until all responses, plus data if required, for the prior snoop are collected.
already says the same thing.3.2.5.5 Multiple Snoops to the Same Address
The host is only allowed to have one snoop pending at a time per cacheline address per device. The host must wait until it has received both the snoop response and all IWB data (if any) before dispatching the next snoop to that address.
Remove rule 11 in section 3.2.5.14:
3.2.5.14 General Assumptions
11. The Host must not send a second snoop request to an address until all responses, plus data if required, for the prior snoop are collected.
However, it may be beneficial to grant the device Exclusive ownership so that it can silently upgrade to Modified state if needed.
In the above picture the requestor sends RdShared, Host sends SnpData to the owner (in M state), and the owner responds with RspIFwdM. Now we know the requestor will have the sole copy. However the spec says RdShared can only get GO-S/I/Err back, not GO-E.
Allowing RdShared to get E state.
We believe that the only purpose of this part of the rule is to disallow examples such as the following:3.2.5.3 Device/Host Snoop/WritePull Assumptions
... the host may not launch a WritePull for a write until the host has received the snoop response (including data in case of Rsp*Fwd*) for any snoops to the pending writes address. Any violation of these requirements will mean that the Bogus field on the D2H Data channel will be unreliable.
However, this example is already disallowed by the following text in rule 3.2.5.2:
Whenever a WritePull is sent, a GO is always accompanying, either as a separate message (in the case of WrInv), or as a combined message (WrCur, ItoMWr, DirtyEvict, CleanEvict). Therefore section 3.2.5.3 is implied by 3.2.5.2. We believe the CXL specification would be clearer if either:3.2.5.2 Device/Host Snoop-GO-Data Assumptions
... When the host is sending a snoop to the device, the requirement is that no GO response will be sent to any requests with that address in the device until after the Host has received a response for the snoop and all implicit writeback (IWB) data (dirty data forwarded in response to a snoop) has been received. ...
Concretely, we propose the following change to the specification:
3.2.5.3 Device/Host Snoop/WritePull Assumptions
The device requires that the host cannot have both a WritePull and H2D Snoop active on CXL.cache to a given 64-byte address. The host may not launch a snoop to a 64- byte address until all WritePull data from that address has been received by the host.Conversely, the host may not launch a WritePull for a write until the host has received the snoop response (including data in case of Rsp*Fwd*) for any snoops to the pending writes address. Any violation of these requirements will mean that the Bogus field on the D2H Data channel will be unreliable.
Here is section 3.2.5.4:
3.2.5.4 Snoop Responses and Data Transfer on CXL.cache Evicts
......If a device Evict transaction has been issued on the CXL.cache D2H request channel, but has not yet processed its WritePull from the host, and a snoop hits the writeback, the device must track this snoop hit if cache state is changed, which excludes the case when SnpCur results in a RspVFwdV response. When the device begins to process the WritePull, if snoop hit is tracked the device must set the Bogus field in all the D2H data messages sent to the host. The intent is to communicate to the host that the request data was already sent as IWB data, so the data from the Evict is potentially stale.

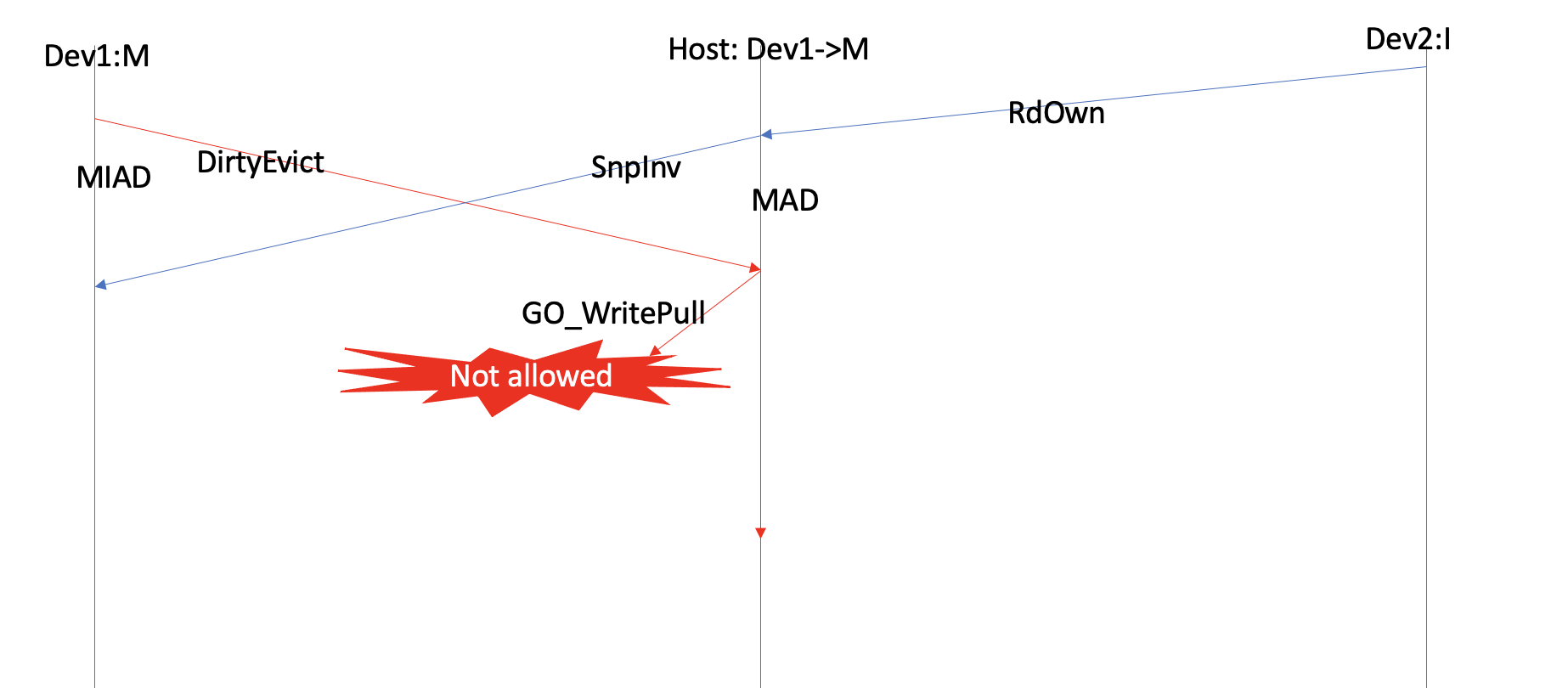

This rule applies to transaction sequences of two forms, and its purpose is to mandate the bogus field to be set in certain D2H Data messages. The first form of transaction sequences is the following:
However, we observe that transaction sequences like this have already been disallowed under 3.2.5.2, as the GO_WritePull will not be sent until after the snoop returns Data and response.

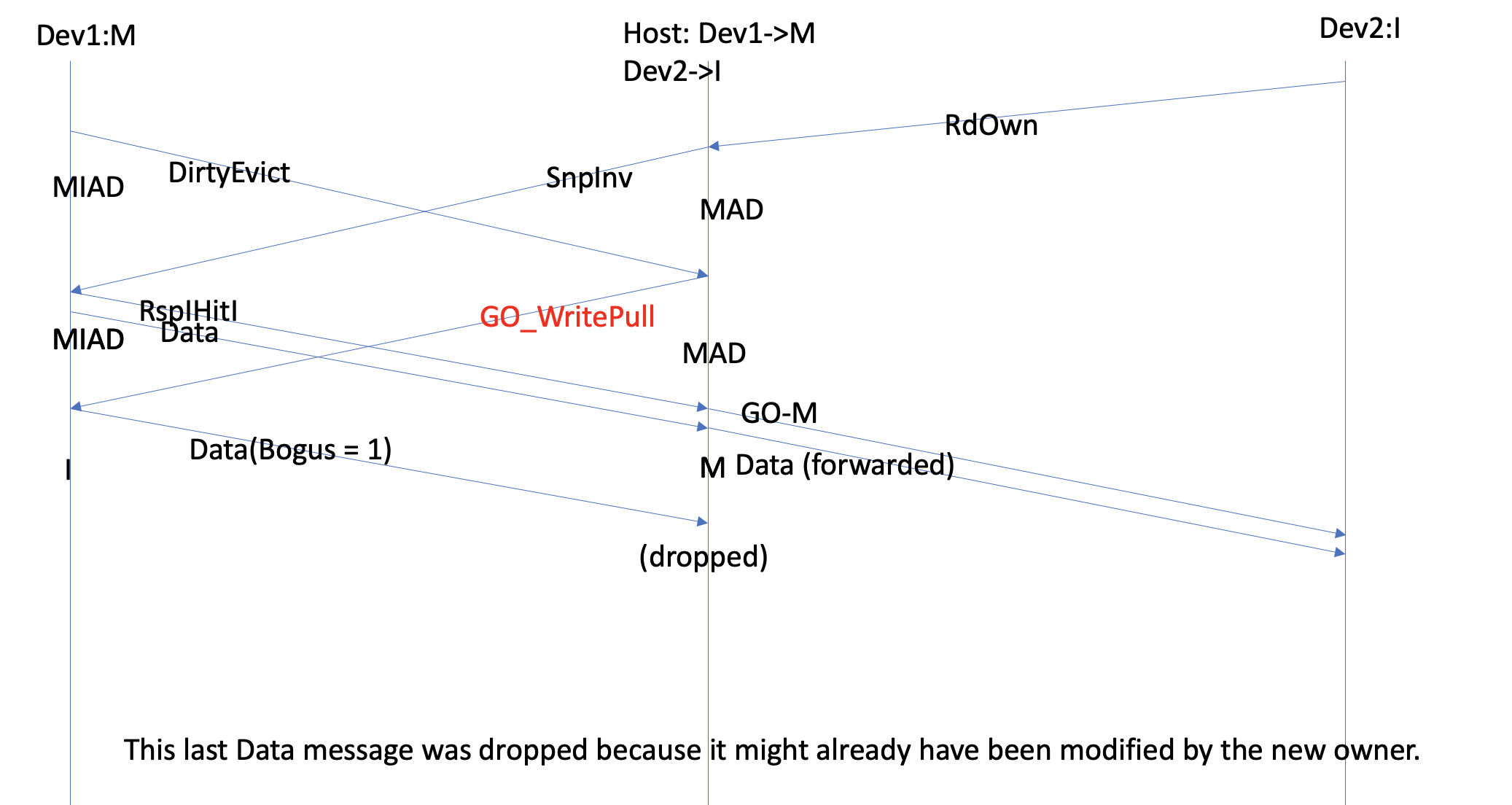

The second form of transaction sequence is the following:

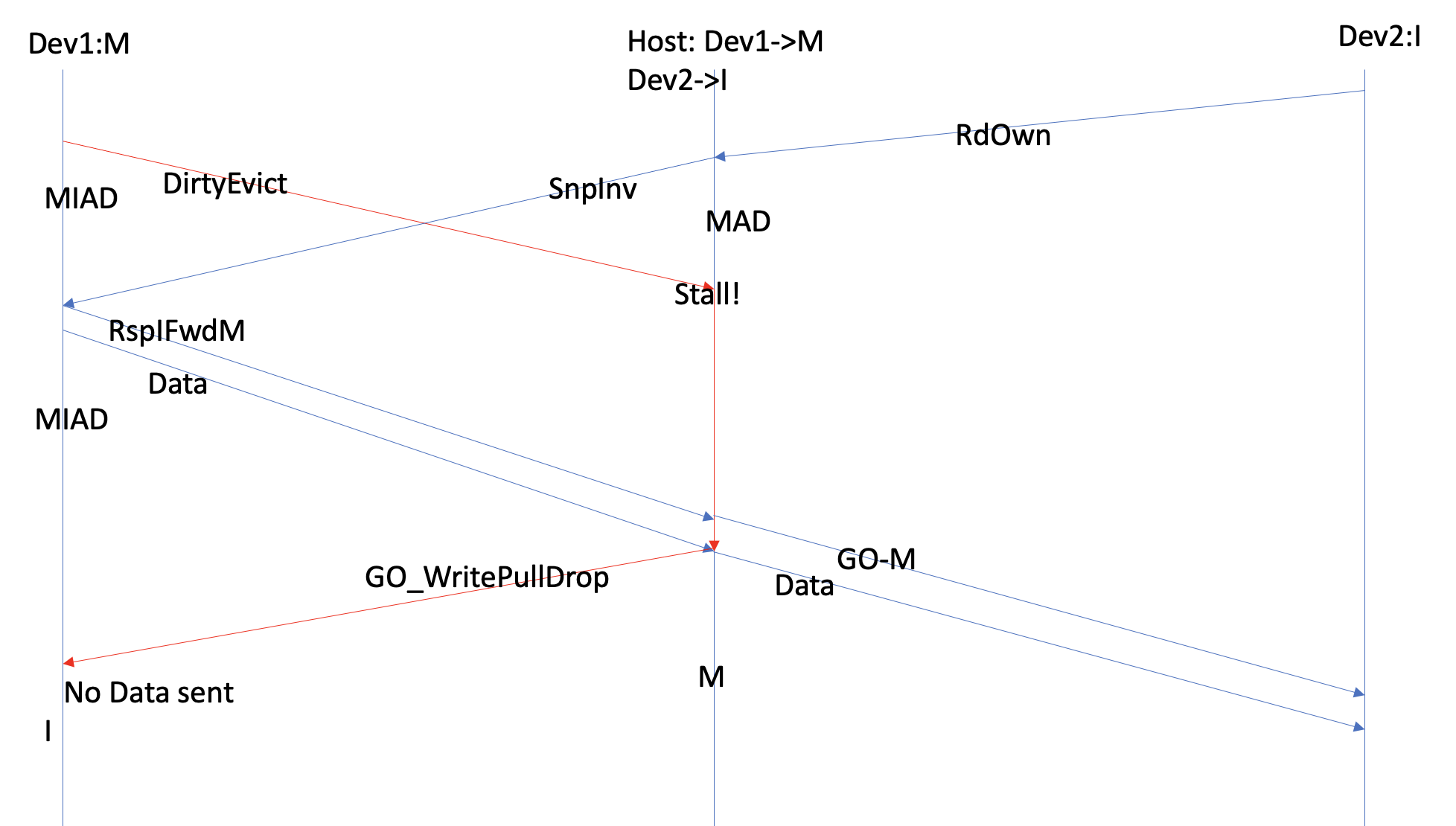

In this situation, we propose to allow the host to send GO_WritePull_Drop instead of GO_WritePull:
because this means that no data will be sent and hence there is no need to require the bogus field to be set.

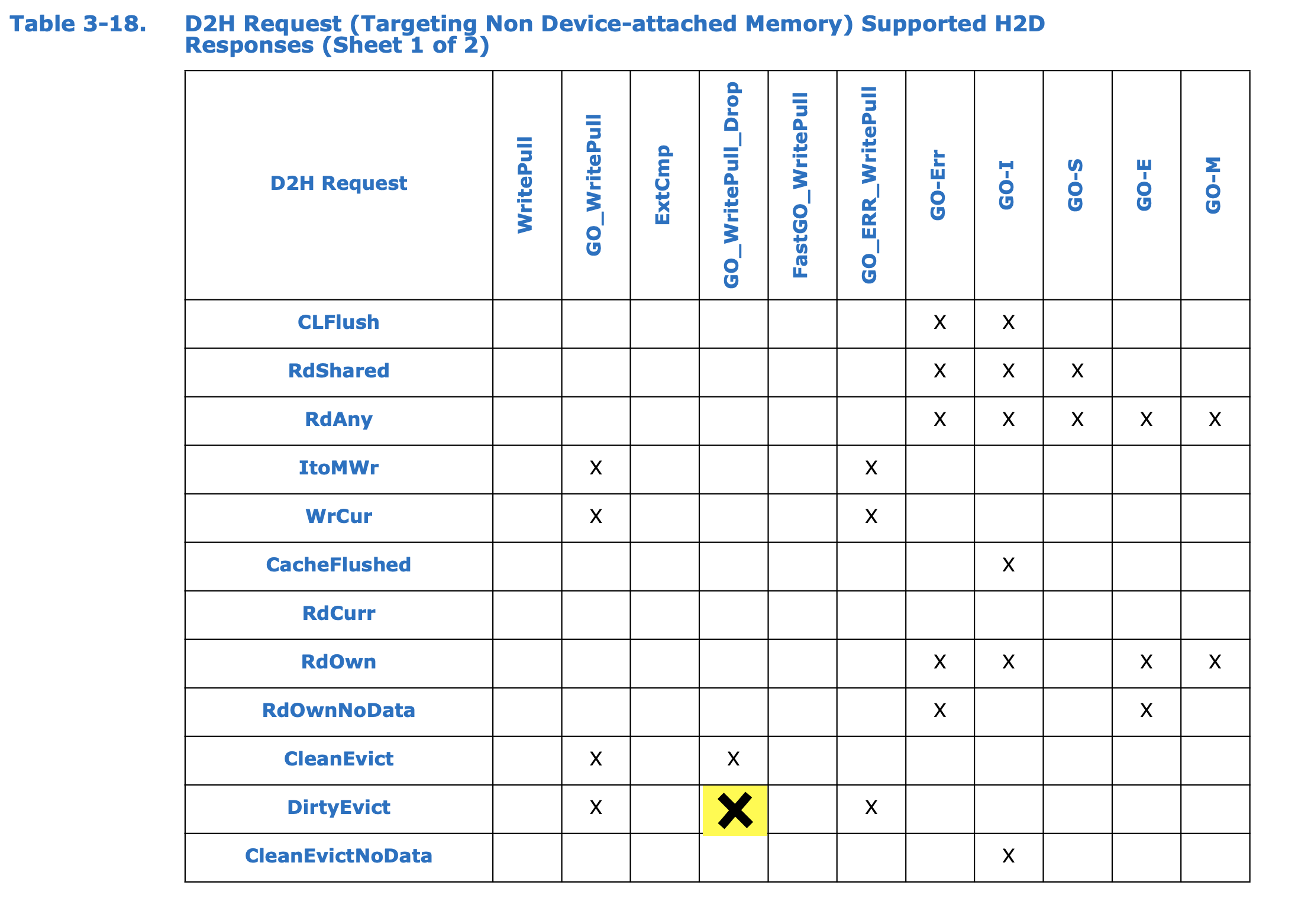

First, we propose to update table 3-18, allowing DirtyEvict to get GO_WritePull_Drop, to accommodate the above transaction sequence.
We also propose to delete 3.2.5.4 entirely:
3.2.5.4 Snoop Responses and Data Transfer on CXL.cache Evicts
To snoop cache evictions (for example, DirtyEvict) and maintain an orderly transfer of snoop ownership from the device to the host, cache evictions on CXL.cache must adhere to the following protocol. If a device Evict transaction has been issued on the CXL.cache D2H request channel, but has not yet processed its WritePull from the host, and a snoop hits the writeback, the device must track this snoop hit if cache state is changed, which excludes the case when SnpCur results in a RspVFwdV response. When the device begins to process the WritePull, if snoop hit is tracked the device must set the Bogus field in all the D2H data messages sent to the host. The intent is to communicate to the host that the request data was already sent as IWB data, so the data from the Evict is potentially stale.
